Smart Glass
Smart switchable glass is a kind of special architectural glass, also known as atomized glass, energized glass, etc. It is a transformation of the singular transparency of ordinary glass and an inevitable product of development the of glass deep processing towards high technology and intelligence.Patterned Smart switchable Glass is a new type of smart switchable glass,
which can be customized with graphic, company logo and other images on the film, and also is a laminated glass combined with two pieces of glass panel and a PDLC smart film. The glass thickness, colors and types can be customized.
Item Description
Standard PDLC Glass(Tempered Extra Clear)
Optical Test
Transmittance(Visable)
ON
78%+/-2%
OFF
60.0%
Optical Test
Transmittance(Parellel)
ON
>75%
OFF
<6%
Haze
ON
<5%
OFF
>90%
Visual Angle
ON
>140°
UV Resistance
ON
>99%
OFF
>99%
IR Resistance
ON
>15%
OFF
>40%
Eletrical Test
Working Voltage
ON
AC 48-60V
Saturation Voltage
ON
AC 60V
Response Time
ON-OFF
200ms
Power Consumption
ON
6w/sqm
Mechanical Parameter
Thickness
10-18mm
Maximum Size
1800*3500mm
Environmental Parameter
Working Temperature
-10°C - 65°C
Storage Temperature
-10°C - 40°C
Service Life
>50000 hours
Switch Frequency
> 1000000 times

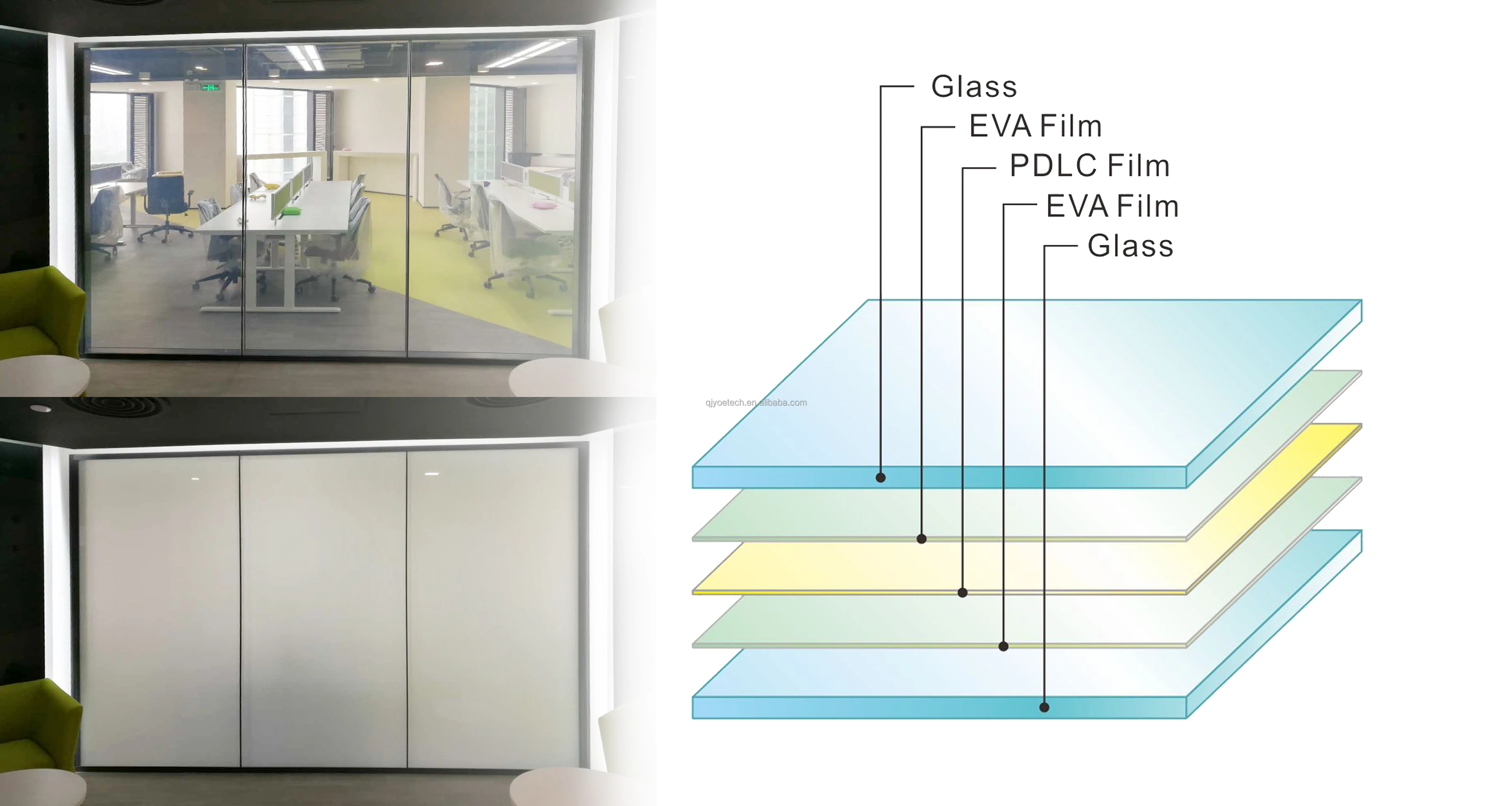

Working principle

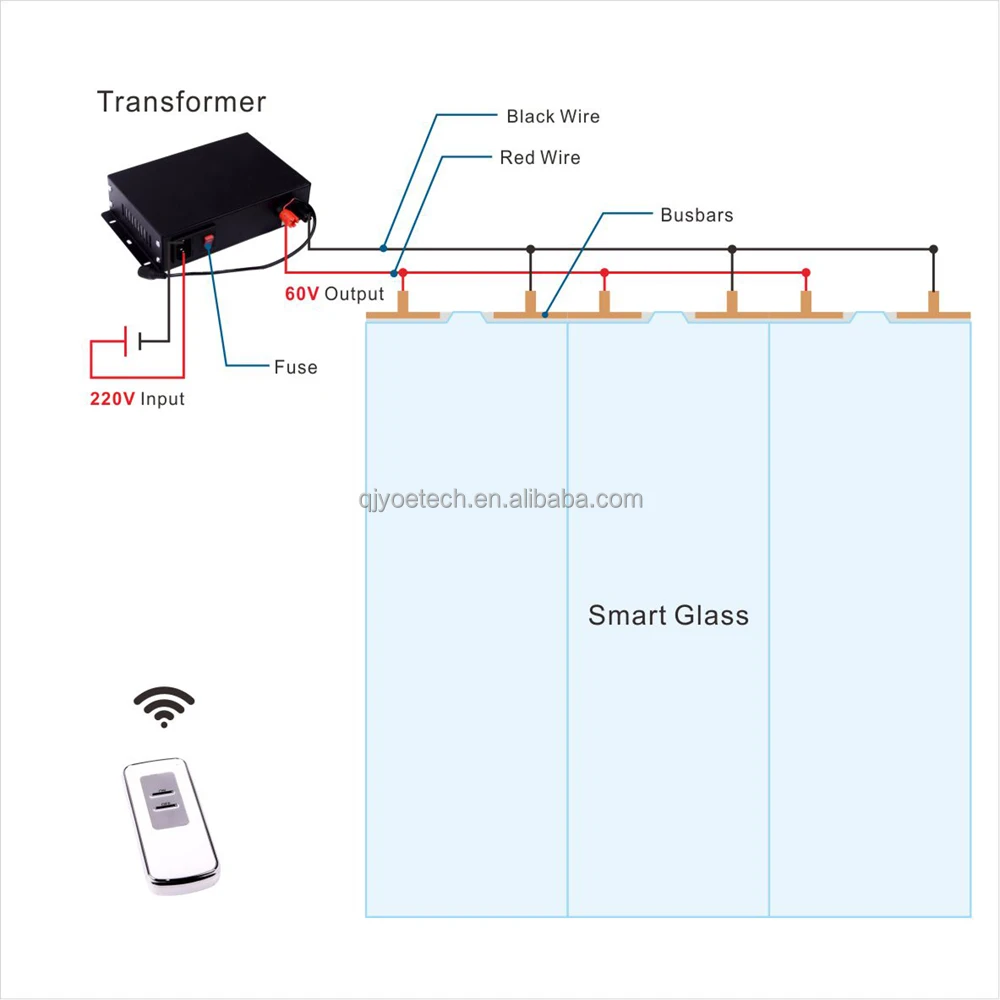

Wiring instructions

Control methods: manual switch, touch switch, voice control, IR sensor, remote control and smart mobile phone APP etc.
1.Privacy protection. As most important function, smart glass can be changed from transparent to opaque via easy model ON & OFF. 2. Perfect function of safety. As smart glass is a special kind of laminated glass, it has all the good function of the laminated glass, mainly the security. 3. Blocks more than 99% UV rays ,avoiding fading in the room. 4. Sound proof. With excellent damping action, the smart glass is easy to block the noise. 5.Projection. When it is under suitable light, the perfect projection appears. 6.No trouble of curtain setting and cleaning. 7.With a modern looking, very good for interior design.
Currently, this product has been widely applied in the sheds, doors, windows and ceilings of car, bath room, shower enclosure, villas, Conference room, insurance companies, supermarket ,hotels, restaurants, churches and command centers. PDLC film applying in luxury hotels, flats and family shower rooms can turn to transparent or opaque easily according to user’s need, which not only ensures personal privacy, but also adds more zest for life.

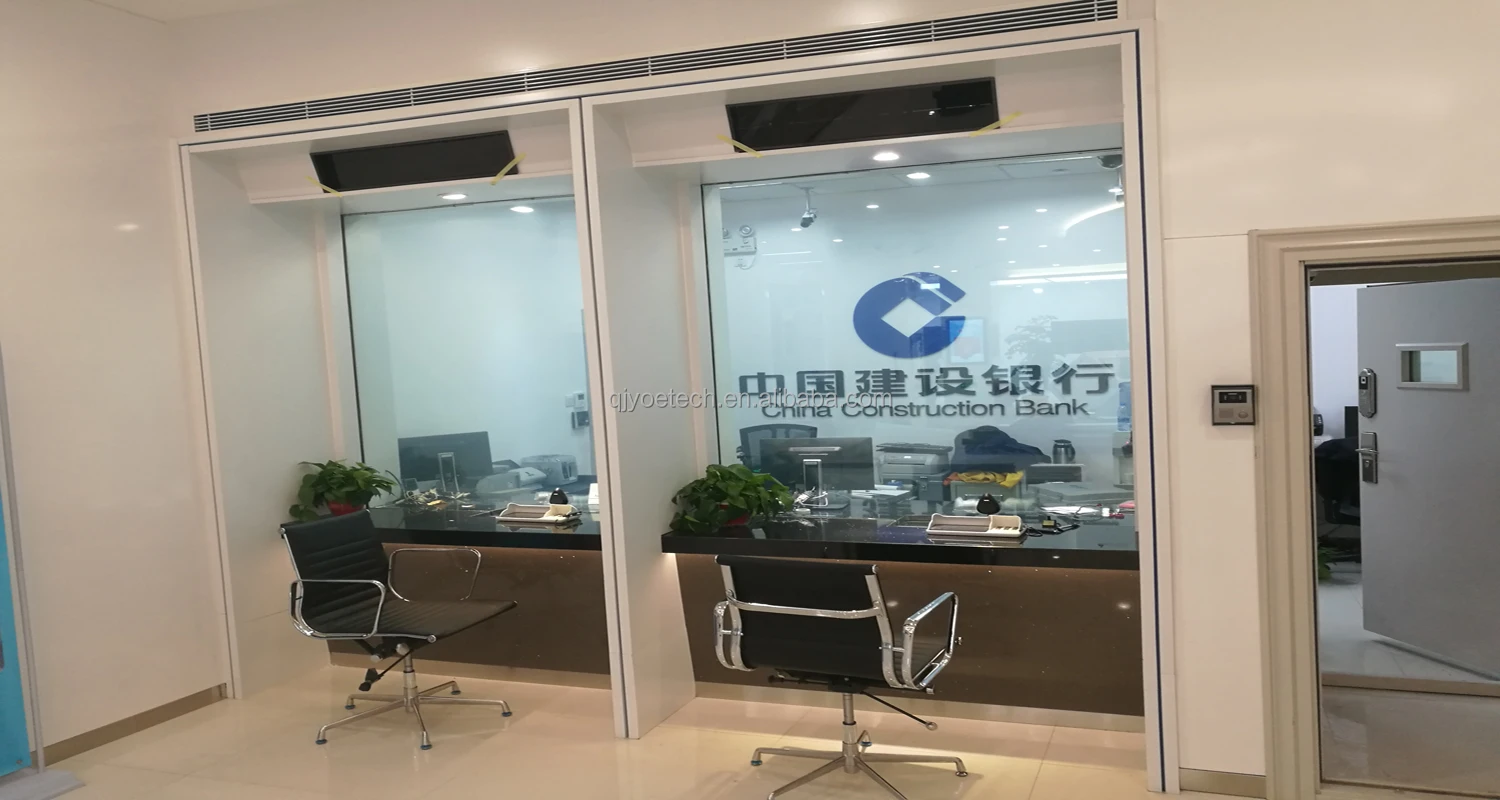

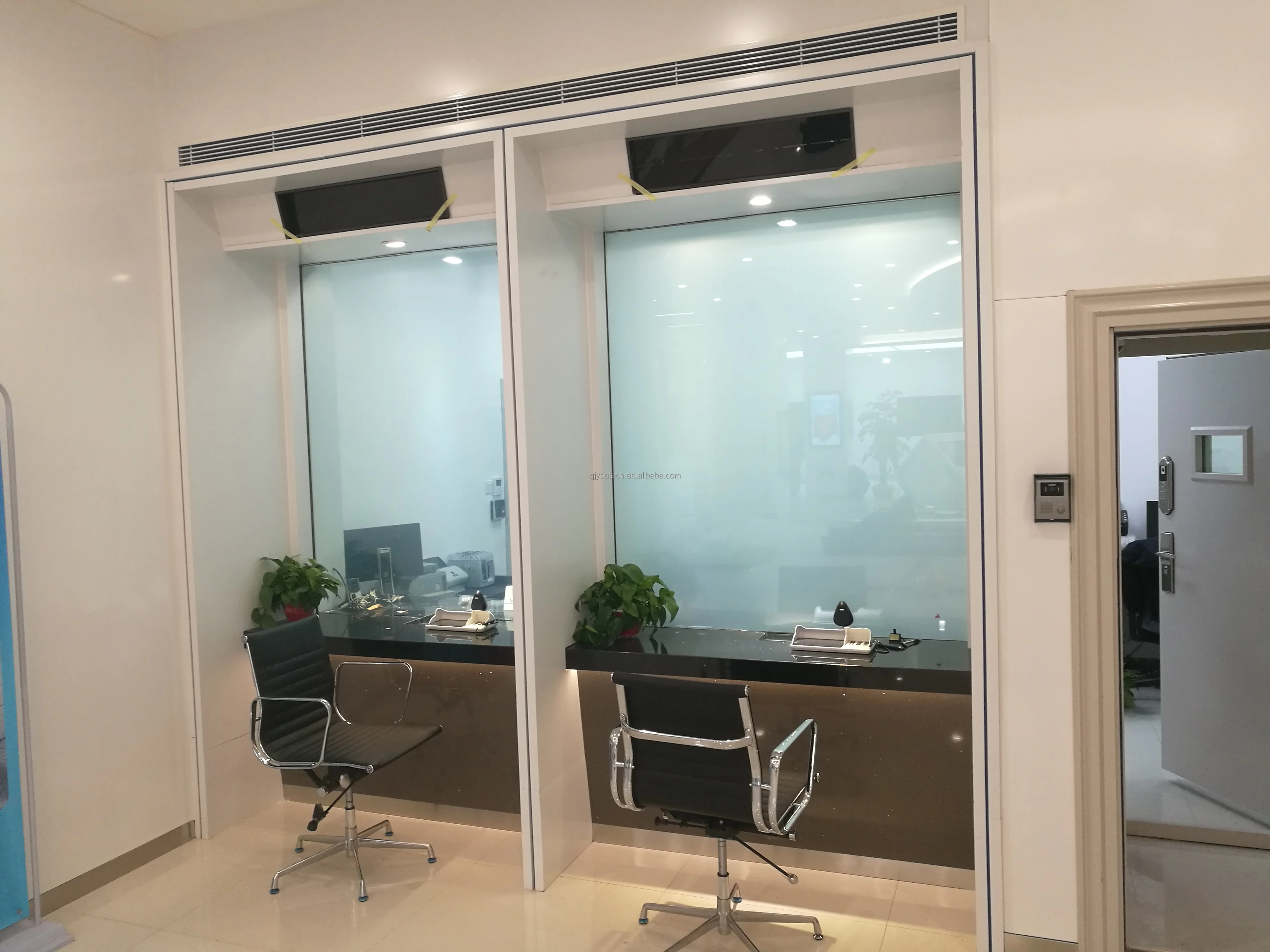

SMART GLASS for displaying and Security

In banking, jewelry industry and exhibition industry counters, bulletproof glass and glass of display are made with switchable  smart glass. When robbery happens, the glass can instantaneously turn into opaque through a variety of ways like remote control so that criminals lose their target which can guarantee maximize personal and property safety.

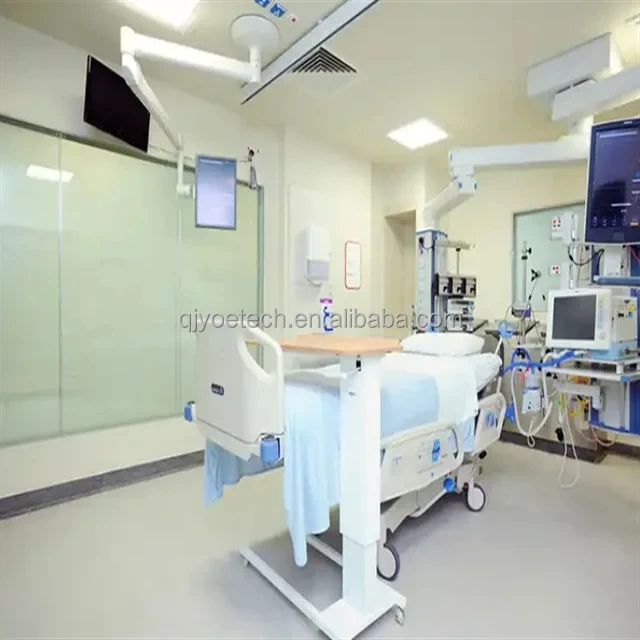

SMART GLASS for hospital

Smart glass can take the place of curtains in the application for medicali nstitutions. Its firmness, safety, noise insulation and environmental protection can help calm the patients down and recovery. It is used in private clinical areas, nurseries, emergency rooms, ICUs, operation rooms.

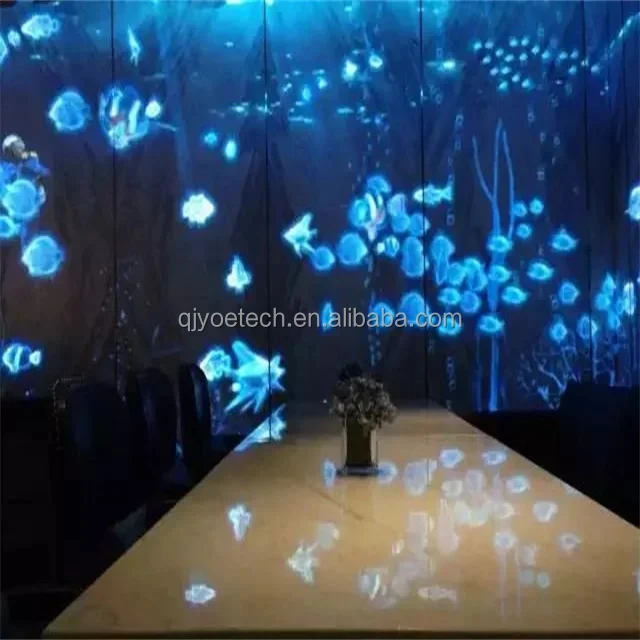

SMART GLASS for projection screen

Application for 2D/3D computer and TV monitor, 3D glasses are no more needed when watching a movie or playing online game. Smart glass can be used in projection screen. The application is as the projection screens of shopping plazas, It will function as electronic glass curtain for inner heat insulation in the day time, In the evening, it would be the perfect large free billboard, flash advertisements on it attract public attention.
