Product Center
Smart Film
    发布时间: 2024-07-11 14:25

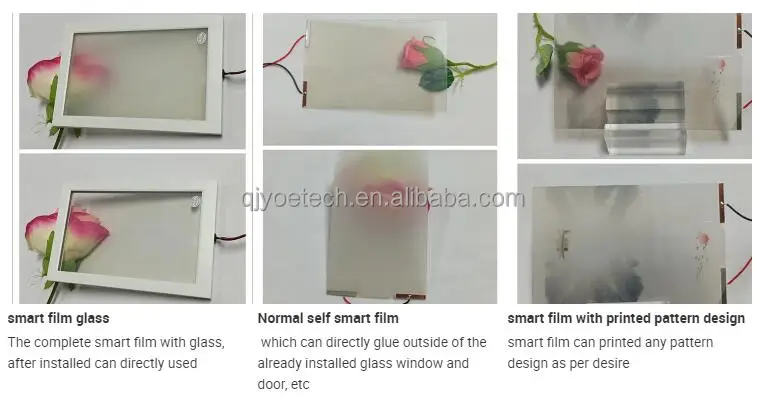

Smart Film
Smart film, also called Switchable film, is a product that is capable of adjusting light transmission between transparent and opaque using AC power. Due to moisture sensitivity, earlier versions of the film were used only to make smart glass by lamination on glass.  The self-adhesive film can be pasted on the glass directly,no need lamination. After installation,connect with power supply, the glass will turn from opaque to transparent. Keep your room have enough light to enter the room, but also keep privacy.
Item Description
Standard PDLC Film
Optical Test
Transmittance(Visable)
ON
81%
OFF
≥60%
Optical Test
Transmittance(Parellel)
ON
>75%
OFF
<6%
Haze
ON
<5%
OFF
97%
Visual Angle
ON
>140°
UV Resistance
ON
>99%
OFF
>99%
IR Resistance
ON
>15%
OFF
>40%
Eletrical Test
Working Voltage
ON
AC 48-60V
Saturation Voltage
ON
AC 60V
Response Time
ON-OFF
200ms
Power Consumption
ON
6w/sqm
Mechanical Parameter
Thickness
0.38mm
Maximum Size
1800*50000mm
Environmental Parameter
Working Temperature
-10°C - 65°C
Storage Temperature
-10°C - 40°C
Service Life
>50000 hours
Switch Frequency
> 1000000 times

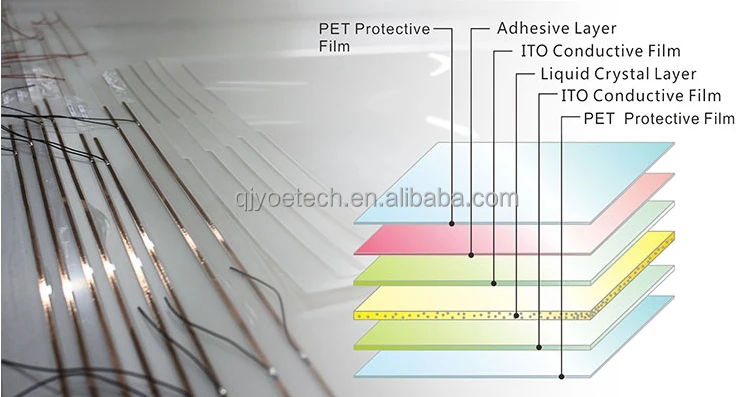

Working principle

Wiring instructions

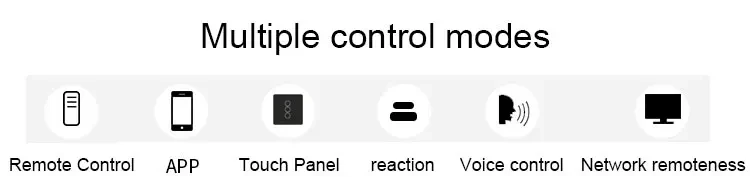

Control methods: manual switch, touch switch, voice control, IR sensor, remote control and smart mobile phone APP etc.
1.Privacy Protection
When the power is on (transparent), the space can be expanded to the maximum extent, which is convenient for internal and external communication. But when the power is off (opaque), it can instantly create a privacy space.
2.Energy-saving and Cost-reducing
The smart film and glass are made into smart switchable glass, which has good thermal insulation effect to reduce indoor solar heat energy, and air conditioning power consumption.
3.Screen Projection
Using a projector to project onto the smart film (self-adhesive film) can produce a clear projection effect. When combined with  infrared touch frame, you can also build a large-size (more than 100 inches) touch screen.

How to install Adhesive smart switchable film?

After our client place an order for the self-adhesive smart switchable film, we will have specific video and picture installation instructions to ensure your smooth installation. At the same time, we have the following colors are available for the self-adhesive smart switchable film.

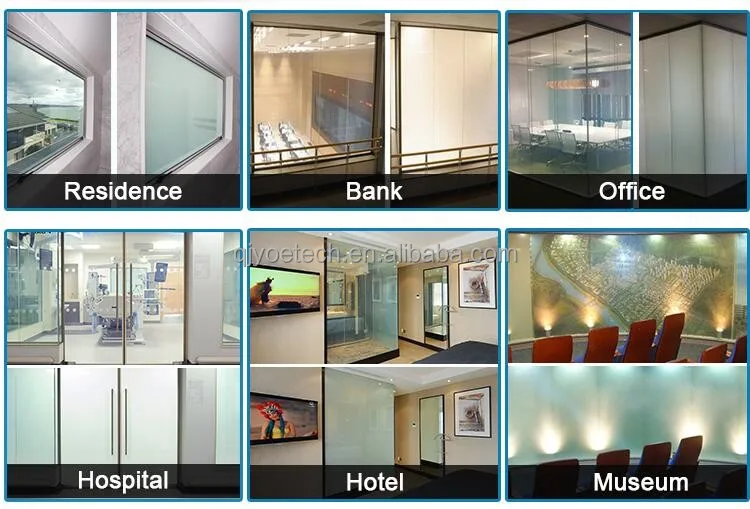

1. Operation department, slapup office / meeting room / receiption room, luxury villa / private room, doors / windows / partitions of senior entertainment.
2. Special ward / operating room of hospital, monitoring room / inquiry room of police station, court, prison.
3. High-class washing room/bathroom,cars, lorries,luxury yacht.
4. Jewelry shop,museum,insurance counter,automatic equipment.
5. Large-scale projection screens.
6. vehicle's windows
7. Other needed places
