Triple Tempered SGP Laminated Glass Panel
    发布时间: 2024-07-11 11:19

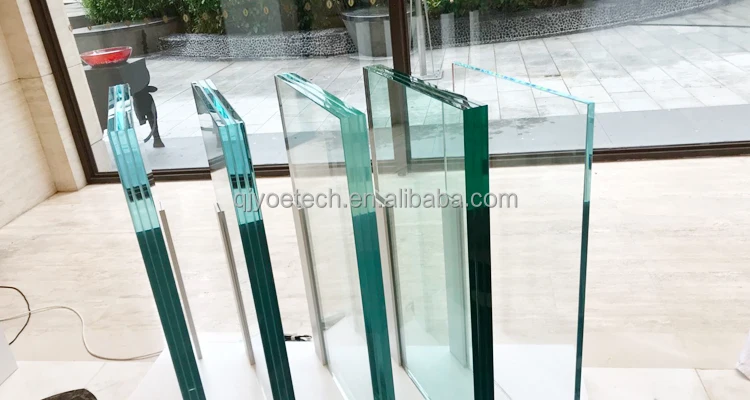

Triple Tempered SGP Laminated Glass Panel
What is SGP laminated glass?
Laminated glass also call sandwich glass, is made of two or more pieces of glass which one layer or multi-layers of PVB/SGP/EVA with strong cohesion sandwiched under high temperature and pressure between them. The glass can be float glass or deep processed glass. The middle layer of laminated glass is also available in a variety of colors and materials to meet different decoration demand.

SGP also called ionoplast interlayer. SGP laboratory. SGP has a very high strength, SGP laminated glass carrying the same thickness of the PVB sandwich bearing capacity of 2 times; the same time load and thickness of the case, SGP laminated glass bending deflection only 1/4 of PVB laminated glass.
The SGP folder film tear strength is 5 times than PVB folder film, even if the glass broken, SGP can also stick broken glass breakage after the formation of a temporary structure, the bending deformation is small, but also can withstand a certain amount of load And not the whole piece of fall.
SGP film has a good edge stability, moisture is not sensitive, SGP folder film itself colorless translucent, and good weather resistance, not yellowing..

Maximum Size
Interlayer Colour of Type
Interlayer Thickness
Build Up or Make Up
Maximum size is 13000mm x 3300mm but subject to limitations with glass, interlayer, toughening and laminating sizes, human impact
and wind load standards.
Clear
 Tinted
Energy Structural Noise proof Decorative
0.76mm
1.52mm
2.28mm
3.04mm 0.76*N(more layers)
This refers to the various combinations of glass and interlayer which are then laminated together as the finished product, contact
for more information.

What More Type of Laminated Glass We can Produce for You?

1. As per shape, flat safety laminated glass and curved laminated safety glass 2. As per processing, non-tempered annealed float laminated glass, heat-strengthened laminated glass, semi-tempered laminated glass, tempered laminated glass, heat-soaked laminated tempered glass; 3. As per monolithic glass type, clear tempered laminated glass, solar reflective laminated safety glass, color tinted decorative safety laminated glass, low-e security laminated glass, silkscreen printed / ceramic fritted toughened laminated glass, sandblasted frosted laminated glass, acid etched laminated glass; 4. As per composition, double laminated glass, triple safety laminated glass, four layers laminated safety glass, five layers laminated glass, etc. 5. As per interlayer, SGP safety laminated glass, PVB safety laminated glass, EVA laminated glass, fabric decorative laminated glass, metal mesh laminated glass, etc. 6. Other customized design laminated glass


1. Stronger
The interlayer offers 5 times of the tear strength than PVB film,and 30-100 times of the hardness than PVB film. 2. Security
Greater security from the threats such as heavy weather. 3. Durability
Greater durability in elevated tempertures. 4. More thinner and lighter than PVB. 5. Excellent weather and Edge Stability.  SGP Laminated Glass Vs PVB laminated Glass: 1.Commons
Both of them are took as a safety glass, when the breakage is occurred, the glass fragments are stick by PVB film or SGP film, that is max reduce the injury compare to tempered glass or anneal glass. 2.Differences Frameless SGP safety laminated glass is Extremely durable and resistant to clouding, still can keep flawless and transparent after years of exposure. But PVB safety laminated glass can’t achieve this, when they exposure outside directly, the interlayer of PVB film will become yellow. Thus they usually work with framed glass structural. Laminated Glass SGP sentry film interlayer have bounce, they can still keep completely stand there when they withstand strong storms, hurricane, even cyclone. Look back to Laminated Glass with PVB Film interlayer, they can’t do this, they will broken down easily..
