Laminated glass
    发布时间: 2024-07-10 16:16

What is laminated glass?
Laminated glass is a kind of safety glass. Laminated glass may break under the impact of a heavy ball, but the whole glass will remain integral, and the fragments and sharp small fragments are still hold by intermediate film. This effectively prevents the occurrence of fragment stabbing and penetration falling events and ensures personal safety.

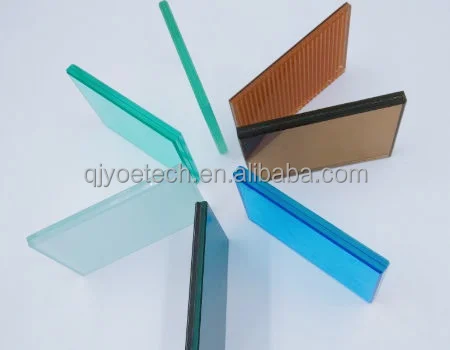

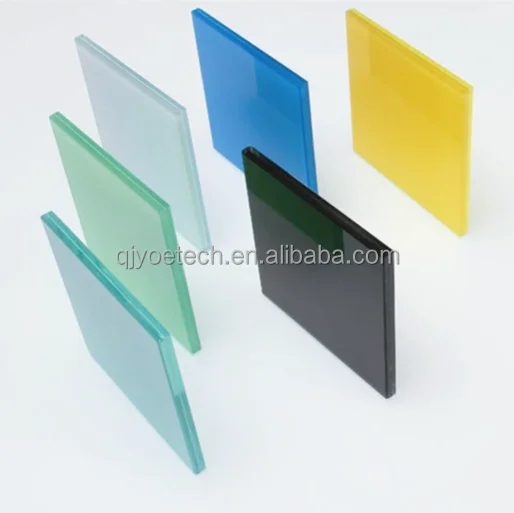

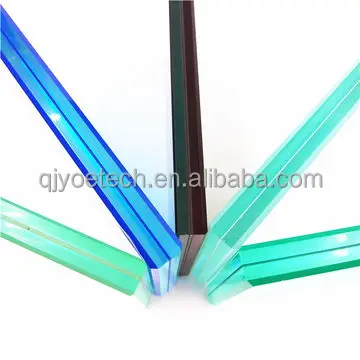

Laminated glass

Types of Laminated Glass


1.Flat laminated glass and curved laminated safety glass

2.Non-tempered annealed float laminated glass, heat-strengthened laminated glass, semi-tempered laminated glass, tempered laminated glass, heat-soaked laminated tempered glass;
3.Clear tempered laminated glass, solar reflective laminated safety glass, color tinted decorative safety laminated glass, low-e security laminated glass, silkscreen printed / ceramic printed toughened laminated glass, sandblasted frosted laminated glass, acid etched laminated glass;

4.Double laminated glass, triple safety laminated glass, four layers laminated safety glass, five layers laminated glass, etc.

5. SGP safety laminated glass, PVB safety laminated glass, EVA laminated glass, fabric decorative laminated glass, metal mesh laminated glass, etc.

6.Other customized design laminated glass


Advantages：

1. Holds together when shattered. The PVB inter-layer keeps the glass bonded, even when broken, resulting in a characteristic spider web cracking pattern across the glass. 2. Cyclone resistant. 3.Superior UV blockage. 4. Excellent sound damping properties. 5. Low visible distortion. 6. Provides improved sound control due to the sound-deafening capabilities of the PVB / SGP interlayer. 7. Create aesthetic sense to buildings
Maximum Size
Interlayer Color
Interlayer Thickness
Build Up or Make Up
Maximum size is 13000mm x 3300mm but subject to limitations with glass, interlayer, toughening and laminating sizes, human impact
and wind load standards.
Clear
 Tinted
Energy Structural Noise proof Decorative
0.38mm
0.76mm
1.14mm
1.52mm
 2.28mm 0.38*N(more layers)
This refers to the various combinations of glass and interlayer which are then laminated together as the finished product, contact
for more information.
Glass Colors
clear, extra clear，dark blue, euro bronze, euro gray, F-green, Ford blue
PVB Film
0.38mm, 0.76mm, 1.14mm, 1.52mm, 1.9mm etc.
PVB Colors
Clear, milky white, bronze, gray, red, orange, green, yellow,blue etc
Maximum Size
2500*8000 mm
Standard Sizes
1830*1220mm, 1830*2440mm, 2140*3300mm, 2140*3660mm, 2250*3210mm, 2440*3300mm,2440*3660mmor custom size
Minimum Thickness
1.3mm+0.38pvb+1.3mm
Regular Thickness(mm)
2+0.38pvb+2, 3+0.38pvb+3, 4+0.38pvb+4 5+0.38pvb+5, 6+0.38pvb+6, 4+0.76pvb+4, 5+0.76pvb+5, 6+0.76pvb+6 etc
Multi-Layer
two-layer, three-layer, four-layer, five-layer or custom requested
Processing Options
Cut to size; edge work; drilling holes; making grooves; tempering etc.
Packing
Seaworthy plywood end cap, mould-proof powder or plastic film or paper interlayer between two pieces of glass

1.External use of glass walls, windows, doors, shop fronts. 2. Offices, houses and shops etc. 3. Interior glass screens, partitions, glass railings,glass fences and glass balustrade, etc. 4. Showcases, display shelves, shop display windows.
5. Furniture, table tops, glass covers, etc.
