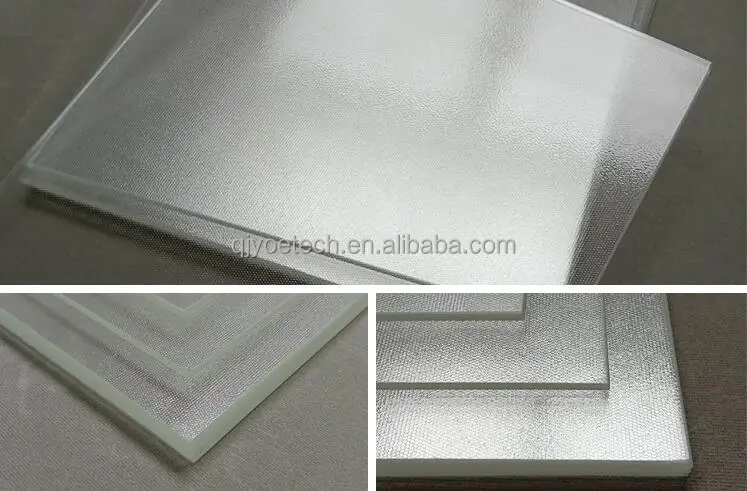

Solar Glass
Low-iron toughened solar panel glass mainly used on solar panel because of its super light transmittance rate. Solar panelis a thin layer of optoelectronic semiconductor which converting solar energy into electricity. By considering its efficiency, weare using High-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality byelimination unwanted distortions with the advanced optical technology. AR glass(Anti-reflective glass) have a special nano-coating,It have high transmittance and low reflectivity, light transmittance>97,light reflectivity<3.
Product name
Tempered Solar panel glass
Thickness
2mm, 2.5mm, 3.2mm and 4mm
Size
Min size 300*300mm, Max size 2000*1650mm
Corner
Safety corner
Grind corner
Round corner
Edge
Flat edge
Round edge
Grind edge
Polished edge
Surface
Mistlite single pattern or flat
Visible light Transmittance
91.6% without AR coating,93.6% with AR coating
Visible light Reflectance
7.3%
Solar Transmittance
92%
Solar reflectance
7.4%
UV transmittance
86.8%
92.2%Total solar heat gain coefficient
92.2%
Shading Coefficient
1.04% Performance varied due to different thickness
Deep processing
Drilling hole, water jet cutting, frosted, anti slip, silkscreen printing, glass shape processing, etc.
1. Ultra high solar energy transmittance and low light reflectance
2. Choice of patterns, to suit the specific application.
3. The pyramidal patterns can assist in the laminating process during module manufacture, but can be used on the external surface if desired;
4. Prismatic/Matte product available with Anti-Reflective (AR) coating for optimal solar energy conversion;
5. Available in fully tempered/toughened form to provide excellent strength with resistance to hail, mechanical impact and thermal stress.
